DRASH interactive design and sales tool

DRASH makes several lines of modular structures and accessories. This sales tool allows the configuration of these modules in a 2D plan view while simultaneously generating an interactive 3D view of the structure layout. Specifications and information about each component as well as totals such as weight for the entire configuration are also provided. Layouts can be saved for later retrieval.

An on-line version of this application can be run from the DRASH site.

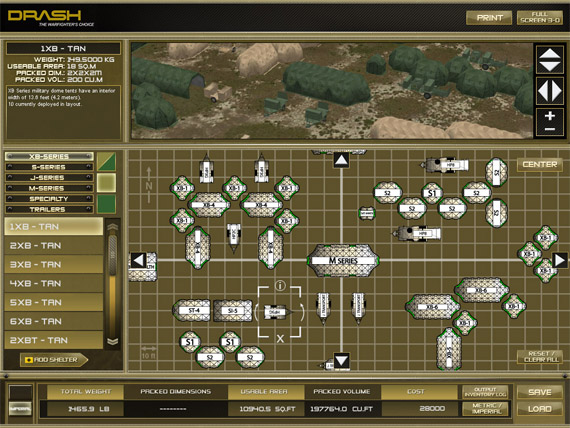

simultaneous plan view and 3D rendered layout
Individual components may be added, removed, moved and rotated. Each type of structure has a set of rules that define how it may be connected to others; the application is aware of these rules and provides visual hints to indicate where components may be connected as well as a "snap" function to connect them.

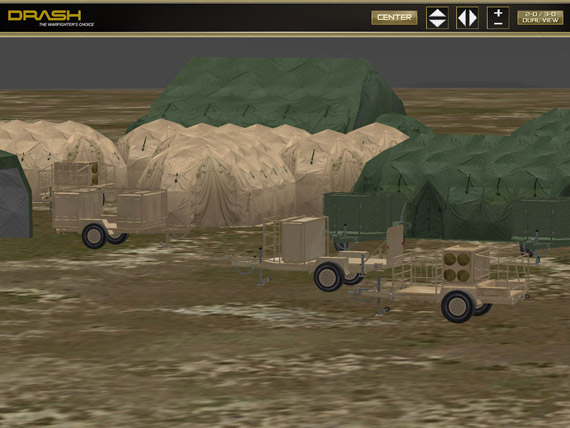

full-screen 3D view
